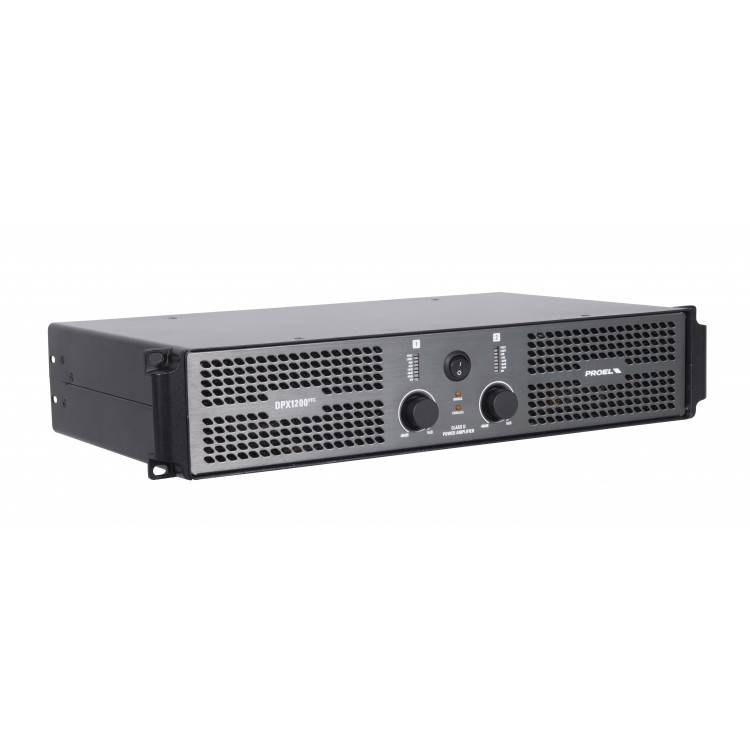

PROEL KONČNA STOPNJA DPX1200PFC CLASS D POWER AMPLIFIER WITH SMPS AND PFC

Proizvajalec: Proel
Koda: O0120011
Zaloga: Na zalogi
Zaloga v skladiščih:
  • Trgovina MB
  • Trgovina Lj, Vošnjakova 16
  • Trgovina Muzikalije LJ
  • Trgovina MS
  • Skladišče MB
  • Trgovina SG
Podrobnosti:

PROEL KONČNA STOPNJA DPX1200PFC CLASS D POWER AMPLIFIER WITH SMPS AND PFC iz kategorije ojačevalniki sodi med odlične Ozvočenja.Power 8 ohm * 350 W Power 4 ohm * 600 W Power BRID ...
Preberi več

Redna cena: 567,36 €
28,37 €
538,99 €
ali plačilo na obroke
Preberite splošne pogoje poslovanja Leanpay Preverite svoj limit
Informativni izračun
PROEL KONČNA STOPNJA DPX1200PFC CLASS D POWER AMPLIFIER WITH SMPS AND PFC iz kategorije ojačevalniki sodi med odlične Ozvočenja.

Power 8 ohm * 350 W
Power 4 ohm * 600 W
Power BRIDGE 8 ohm ** 1200 W
Output Stage Class D
Frequency response (+0.5/-0.5 dB) 20 Hz - 20 KHz
Input Sensitivity +2.3 dBu / 1.0 Vrms
GAIN (nominal/fixed) 36 dB
Input Connectors / Impedance XLR-F (INPUT), XLR-M (LINK) / 20 Kohm (balanced), 10 Kohm (unbalanced)
Output Connectors SPEAKON and Binding Post
Damping Factor > 500
S/N Ratio (unweighted) > 100 dB
THD+N < 0.15%
Controls INPUT LEVEL, STEREO/BRIDGE-PARALLEL, FLAT/BI-AMP/HPF
LED Indicators 7-LED BAR (ON, LIMIT, PROTECTION, -5dB / -10dB / -20dB / -40dB SIGNAL)
Cooling Variable speed DC fan, air flow from front to rear
Protections AC low power, DC, thermal, short circuit, VHF, CLIP limiter
Mains Supply Voltage 100-240 VAC 50/60 Hz (±10%)
Dimensions (W x H x D) 483 x 89 x 255 mm (19" x 3.5" x 10")
Weight 3.8 Kg (8.4 lb)
* Power per channel tested under EIA standard
** Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
PROEL KONČNA STOPNJA DPX1200PFC CLASS D POWER AMPLIFIER WITH SMPS AND PFC iz kategorije ojačevalniki sodi med odlične Ozvočenja.

Power 8 ohm * 350 W
Power 4 ohm * 600 W
Power BRIDGE 8 ohm ** 1200 W
Output Stage Class D
Frequency response (+0.5/-0.5 dB) 20 Hz - 20 KHz
Input Sensitivity +2.3 dBu / 1.0 Vrms
GAIN (nominal/fixed) 36 dB
Input Connectors / Impedance XLR-F (INPUT), XLR-M (LINK) / 20 Kohm (balanced), 10 Kohm (unbalanced)
Output Connectors SPEAKON and Binding Post
Damping Factor > 500
S/N Ratio (unweighted) > 100 dB
THD+N < 0.15%
Controls INPUT LEVEL, STEREO/BRIDGE-PARALLEL, FLAT/BI-AMP/HPF
LED Indicators 7-LED BAR (ON, LIMIT, PROTECTION, -5dB / -10dB / -20dB / -40dB SIGNAL)
Cooling Variable speed DC fan, air flow from front to rear
Protections AC low power, DC, thermal, short circuit, VHF, CLIP limiter
Mains Supply Voltage 100-240 VAC 50/60 Hz (±10%)
Dimensions (W x H x D) 483 x 89 x 255 mm (19" x 3.5" x 10")
Weight 3.8 Kg (8.4 lb)
* Power per channel tested under EIA standard
** Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
